Description

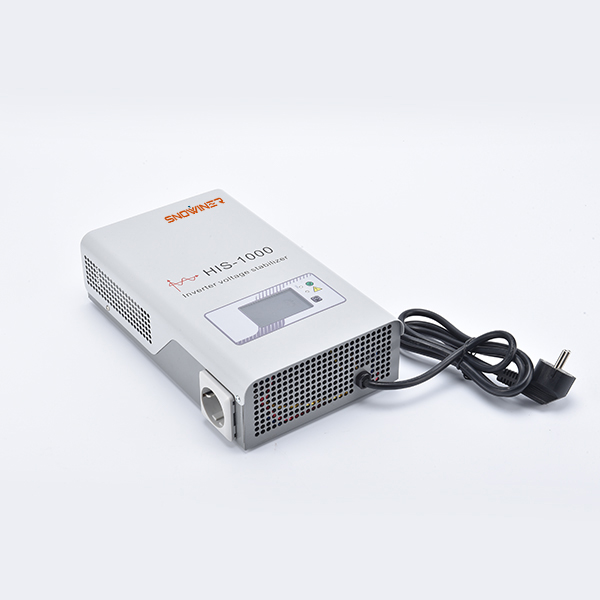

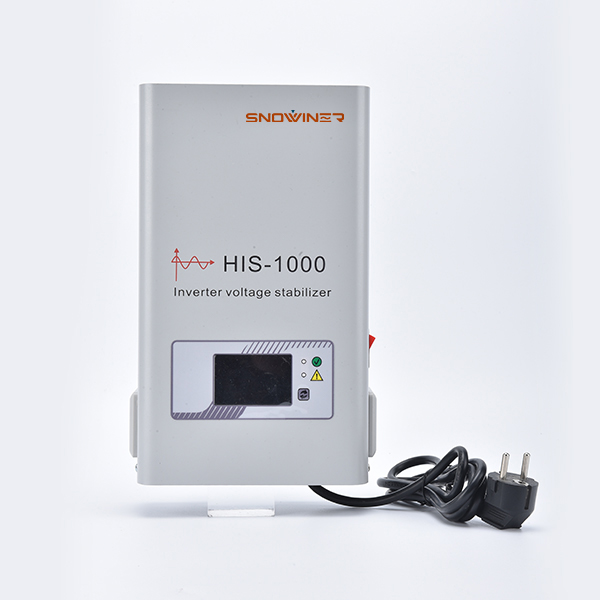

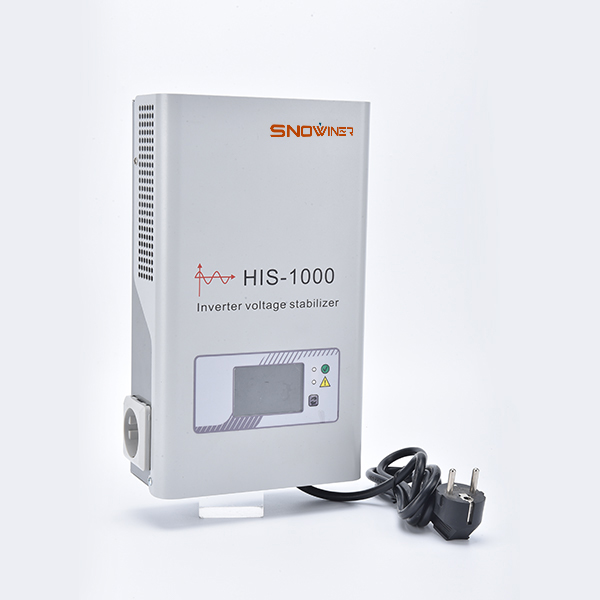

1KVA Single-phase Inverter Voltage Regulator with a rated power of 800W is suitable for various places with unstable power environments, such as family homes, agricultural irrigation systems, small factories, construction sites, and commercial lighting areas. It can provide continuous and stable voltage protection for various electrical equipment, effectively preventing equipment damage or operating failures caused by voltage fluctuations. Applicable equipment includes pumping equipment such as submersible pumps and sprinkler pumps, power tools such as electric drills, electric hammers, cutting machines, and various lighting equipment such as LED lights, floodlights, street lights, etc. By automatically adjusting the output voltage, the voltage stabilizer can extend the service life of electrical equipment and improve the overall safety and efficiency of electricity use. It is an ideal power protection solution to ensure the regular operation of key equipment.

Product advantages

Input voltage range during operation 90/310v

A wider range of stable voltages

High precision stabilization

The device is designed with no moving components and is absolutely quiet during operation

Absolutely silent operation

The device is designed with no moving components and is absolutely quiet during operation

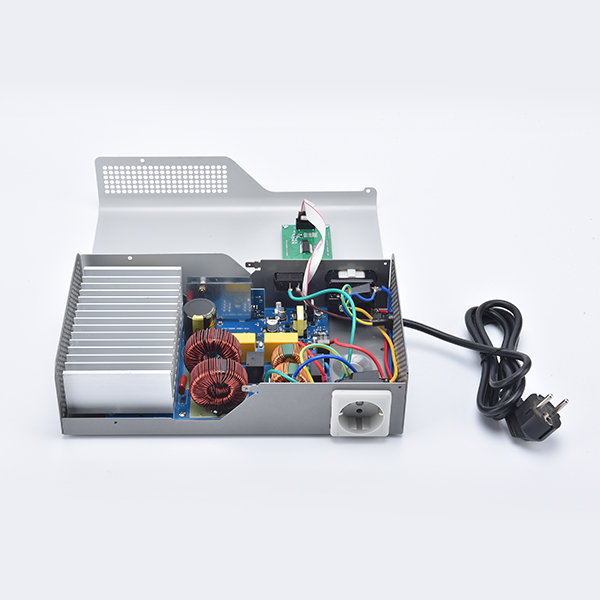

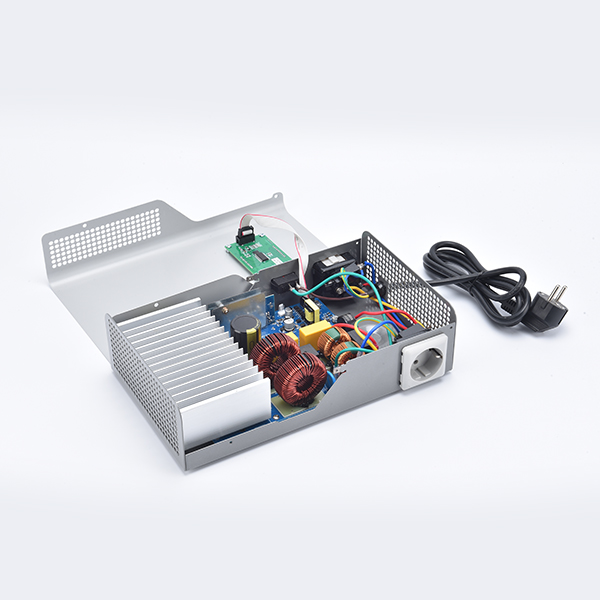

Transformerless circuit

The device has dual voltage conversion

Full digital control

Based on high performance digital signal processor

Conveniently display

Stabilizer operating mode, accident and network problem tips

The load during a network failure can be as long as 200ms

Ensure continuous load operation during short interruption of input voltage

Interference filtering

Effectively protects the load and input network from a wide range of high-frequency interference

High efficiency

Provides less power consumption

Generator compatibility

The stabilizer will adjust the value and quality of the generator output signal to avoid unnecessary start-up

High overload capacity

Effectively cope with high starting currents including motor loads

Light weight and compact size

Combined with a modern design, it provides a comfortable placement in any space

Long Service Life

Advanced circuit solutions and modern electronic components are used

We can make special samples for voltage stabilizers according to customers' requirements.

All customized solutions and production preparation can be completed efficiently before shipment to ensure consistent delivery schedule and quality.

If you have OEM / ODM project requirements, please contact us in time and provide design drawings or technical documents, we will provide professional support and co-development services.

Raw material preparation, product production, shipment and document preparation can be done by us.

Technical parameters

Input properties

Power	800W
Stabilization Range	90-310V
Nominal Input Frequency	50Hz
Input Frequency Range	43-57Hz
Low voltage protection	90V
High voltage protection	310V
Input Power	0.99
Max input current	4.9A
No-load power	30W
Startup Mode	Soft

Output characteristics

Rated output voltage	220V~230V
Stabilization Precision	±1%
Performance	0ms
Output Voltage Waveform	pure sine
Output Frequency	50Hz
Maximum output current	4.5A
Peak Efficiency	97%

Protect

Low Voltage protection	<90V
High Voltage Protection	>310V
Overload Protection	YES
High Temperature Protection	>85℃
Short-circuit Protection	YES
Overload Capacity	5s@105-150% load
Anti-high-frequency Range	150KHZ-80MHZ

Application scenario

Air conditioner

Kitchen

compute equipment and office equipment

televisions

audio and video equipment

lighting equipment

Design

Display type	LED
Waterproof and Dustproof Rating	IP20
Plug Type	A06
Dimension(WidthDepthHeight),mm	225x160x80
Weight, kg	13

Please note

Emergency protection

Only models with modern protection systems are suitable for private homes and summer houses. The algorithm of operation is as follows: in case of overheating, overloading or internal faults, the ‘bypass’ function is activated; in case of short-circuits, high or low mains voltage, the device is switched off and the automatic start-up function is also important, because it will return to normal operation as soon as the factors that triggered the protection have disappeared.

Decide in advance where and how to place the stabiliser

It is most convenient to install a device that can protect a single load or a group of loads in the vicinity. It is recommended to install a ‘network-wide’ stabiliser in the area of the input distribution board. In both cases it is necessary to ensure that the equipment is installed on site.

There is sufficient space to ensure that it is safely placed in the operating position;.

The temperature and humidity indicators correspond to acceptable levels. The temperature and humidity indicators correspond to acceptable values.

Easy access to its controls and indicators, as well as on/off buttons and input/output connectors;.

There are no high concentrations of dust, strong vibrations or chemically active environments (a list of prohibitions can be found in the technical documentation);.

Ensure free ventilation.

If the above points are not followed, you should consider another model or change the installation location.

Get in Touch New

We also recommend that you consider the factors listed in the table when placing

Parameter name	Parameter Description
Allowable Temperature Range	Voltage regulators are heat-loving devices and therefore should not be placed outside or in unheated rooms.
Noise level	The activation of mechanical elements in relays and electromechanical models is accompanied by a rather loud click or clank. The operation of powerful inverters and semiconductor models is not silent either - their forced ventilation systems generate noise. For this reason, we do not recommend placing powerful devices in bedrooms, living rooms or kitchens.
Requirements for protection against external influences	Dust, humidity, strong vibrations and harsh environments are undesirable. The equipment must be installed in a dry, dust-free, gas-free area, away from sources of ignition and explosive hazardous substances.
