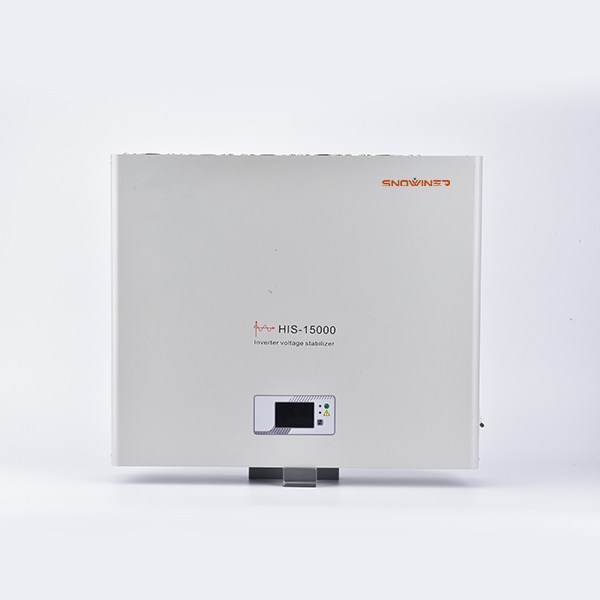

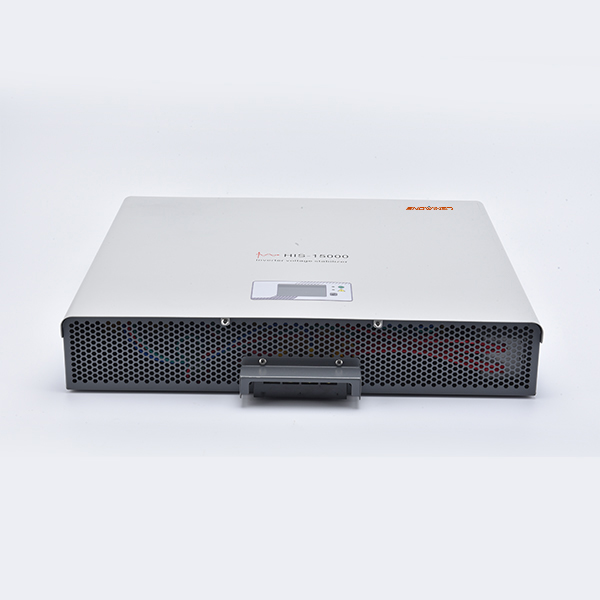

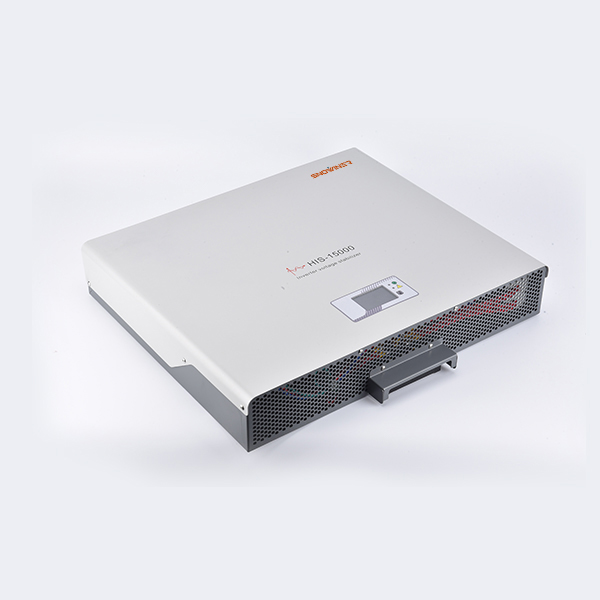

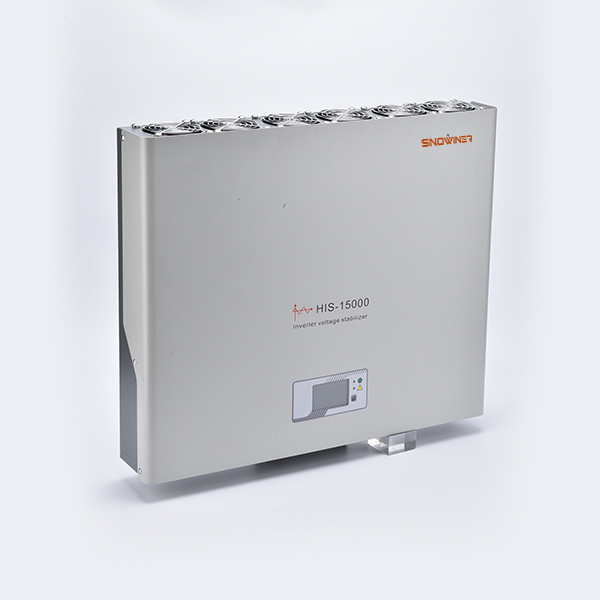

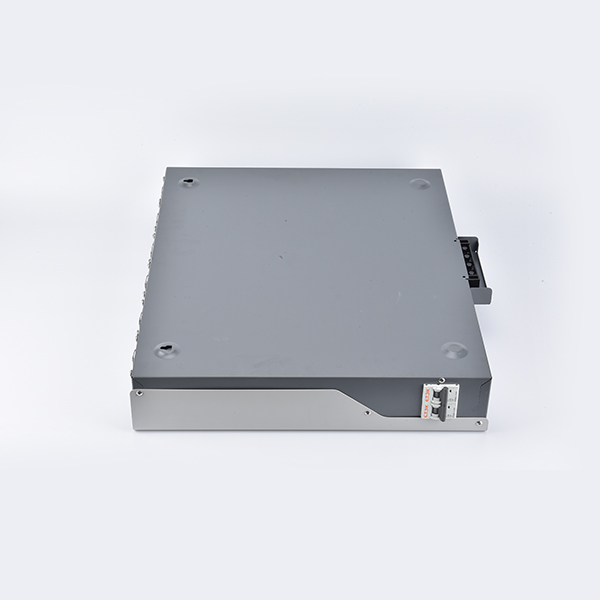

15KVA Wall Mounted Voltage Stabilizer for Home Inverter

15KVA Wall Mounted Voltage Stabilizer for Home Inverter

The 13500W 15KVA Wall Mounted Voltage Stabilizer for Home Inverter is designed to respond effectively to voltage fluctuations in power systems. This inverter regulator focuses on high performance, long runtime stability and fast response time to ensure that the equipment can still operate in unstable power environments, preventing damage to the equipment or interruptions in operation due to voltage problems.

To control the operation of the stabilizer, the control panel has an informative LCD display, LED indicators and a function key.

"Normal" - if it is always on, it means that the device is operating in normal mode; if it flashes, it means that it has switched to automatic bypass;

"Alarm" - lights up red when one of the following problems occurs: overheating, overload (the information is repeated on the LCD display), short circuit, internal fault, network disconnection or low load resistance.

The LCD display shows the following parameters:

Input and output voltage values; to automatic bypass;

Load level gauge

Load power consumption

Temperature inside the device

Emergency information (overload, overheating)

Description

The 13500W 15KVA Wall Mounted Voltage Stabilizer for Home Inverter can effectively cope with voltage fluctuations in the power system. This inverter stabilizer focuses on high efficiency, long-term operation stability, and fast response capabilities to ensure the equipment can operate normally in an unstable power environment and prevent equipment damage or work interruption due to voltage problems. In addition, this voltage stabilizer is also particularly suitable for high-end villa residences. It can provide precise voltage regulation for high-end electrical equipment such as home theater systems, smart home control centers, refrigerators, washing machines, water heaters, and air conditioners to prevent equipment damage or performance degradation caused by unstable voltage. Its inverter-type design not only improves the power conversion efficiency but also enhances the stability of voltage output, making it particularly outstanding in places with high requirements for power quality.

Product advantages

Input voltage range during operation 90/310v

A wider range of stable voltages

High precision stabilization

The device is designed with no moving components and is absolutely quiet during operation

Absolutely silent operation

The device is designed with no moving components and is absolutely quiet during operation

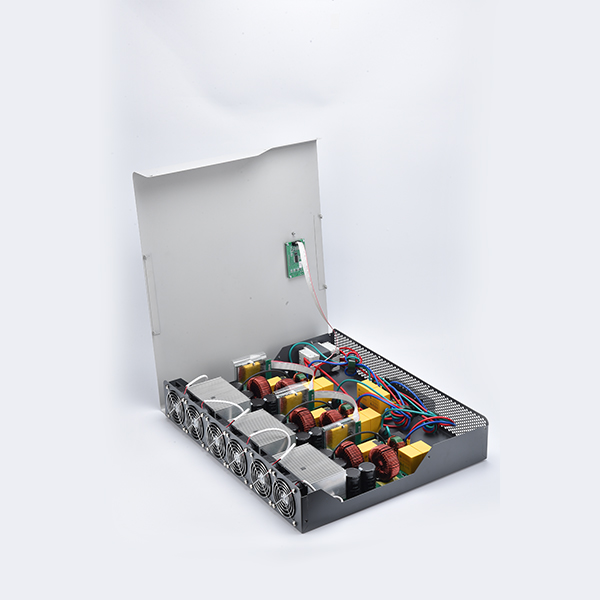

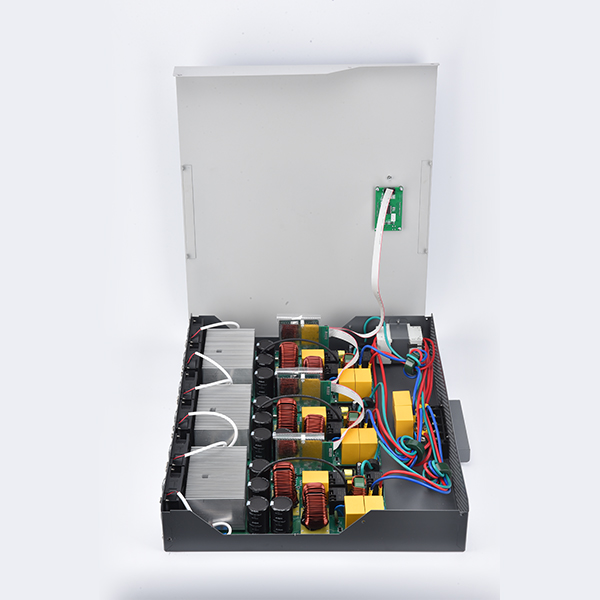

Transformerless circuit

The device has dual voltage conversion

Full digital control

Based on high performance digital signal processor

Conveniently display

Stabilizer operating mode, accident and network problem tips

The load during a network failure can be as long as 200ms

Ensure continuous load operation during short interruption of input voltage

Interference filtering

Effectively protects the load and input network from a wide range of high-frequency interference

High efficiency

Provides less power consumption

Generator compatibility

The stabilizer will adjust the value and quality of the generator output signal to avoid unnecessary start-up

High overload capacity

Effectively cope with high starting currents including motor loads

Light weight and compact size

Combined with a modern design, it provides a comfortable placement in any space

Long Service Life

Advanced circuit solutions and modern electronic components are used

We can make special samples for voltage stabilizers according to customers' requirements.

All customized solutions and production preparation can be completed efficiently before shipment to ensure consistent delivery schedule and quality.

If you have OEM / ODM project requirements, please contact us in time and provide design drawings or technical documents, we will provide professional support and co-development services.

Raw material preparation, product production, shipment and document preparation can be done by us.

Technical parameters

Input properties

Power	13500W
Stabilization Range	90-310V
Nominal Input Frequency	50Hz
Input Frequency Range	43-57Hz
Low voltage protection	90V
High voltage protection	310V
Input Power	0.99
Max input current	88A
No-load power	75W
Startup Mode	Soft

Output characteristics

Rated output voltage	220V~230V
Stabilization Precision	±1%
Performance	0ms
Output Voltage Waveform	pure sine
Output Frequency	50Hz
Maximum output current	68A
Peak Efficiency	97%

Protect

Low Voltage protection	<90V
High Voltage Protection	>310V
Overload Protection	YES
High Temperature Protection	>85℃
Short-circuit Protection	YES
Overload Capacity	5s@105-150% load
Anti-high-frequency Range	150KHZ-80MHZ

Application scenario

Air conditioner

Kitchen

compute equipment and office equipment

televisions

audio and video equipment

lighting equipment

Design

Display type	LED
Waterproof and Dustproof Rating	IP20
Plug Type	A06
Dimension(WidthDepthHeight),mm	225x160x80
Weight, kg	13

Please note

Emergency protection

Only models with modern protection systems are suitable for private homes and summer houses. The algorithm of operation is as follows: in case of overheating, overloading or internal faults, the ‘bypass’ function is activated; in case of short-circuits, high or low mains voltage, the device is switched off and the automatic start-up function is also important, because it will return to normal operation as soon as the factors that triggered the protection have disappeared.

Decide in advance where and how to place the stabiliser

It is most convenient to install a device that can protect a single load or a group of loads in the vicinity. It is recommended to install a ‘network-wide’ stabiliser in the area of the input distribution board. In both cases it is necessary to ensure that the equipment is installed on site.

There is sufficient space to ensure that it is safely placed in the operating position;.

The temperature and humidity indicators correspond to acceptable levels. The temperature and humidity indicators correspond to acceptable values.

Easy access to its controls and indicators, as well as on/off buttons and input/output connectors;.

There are no high concentrations of dust, strong vibrations or chemically active environments (a list of prohibitions can be found in the technical documentation);.

Ensure free ventilation.

If the above points are not followed, you should consider another model or change the installation location.

Get in Touch New

We also recommend that you consider the factors listed in the table when placing

Parameter name	Parameter Description
Allowable Temperature Range	Voltage regulators are heat-loving devices and therefore should not be placed outside or in unheated rooms.
Noise level	The activation of mechanical elements in relays and electromechanical models is accompanied by a rather loud click or clank. The operation of powerful inverters and semiconductor models is not silent either - their forced ventilation systems generate noise. For this reason, we do not recommend placing powerful devices in bedrooms, living rooms or kitchens.
Requirements for protection against external influences	Dust, humidity, strong vibrations and harsh environments are undesirable. The equipment must be installed in a dry, dust-free, gas-free area, away from sources of ignition and explosive hazardous substances.
